Conundrum 16

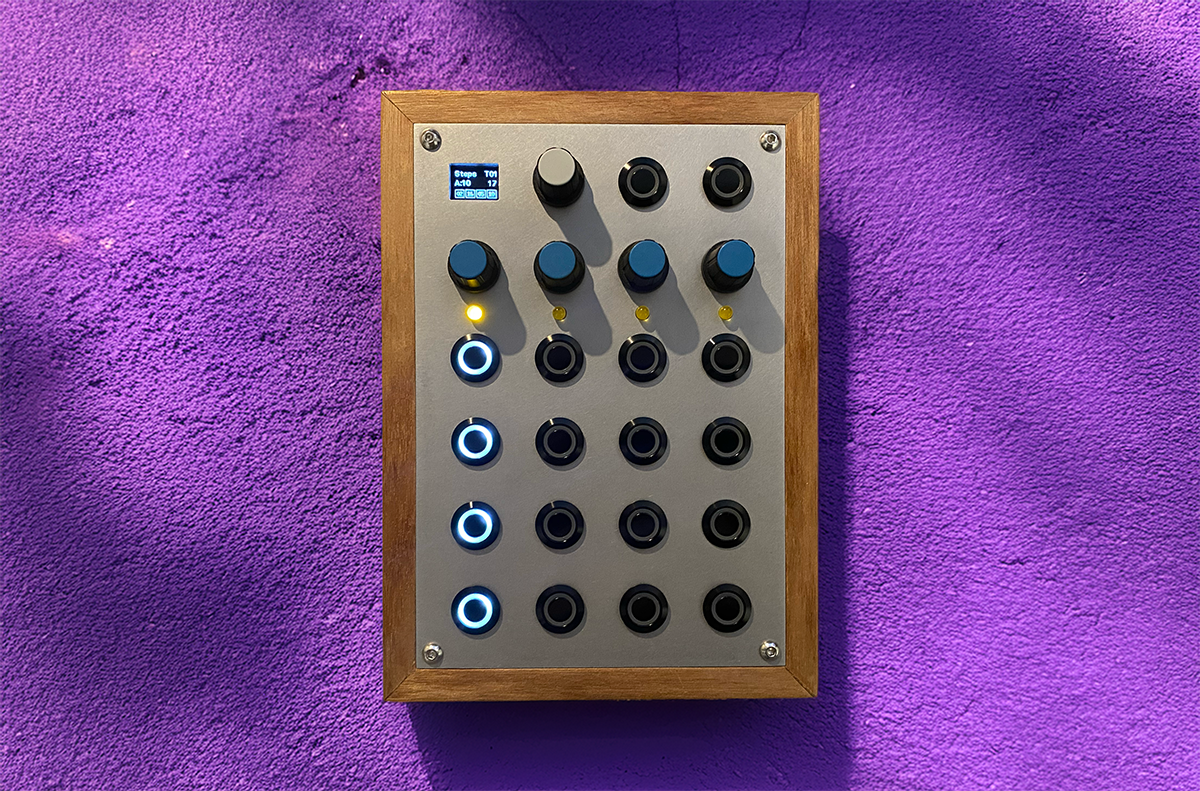

The Conundrum 16 is a hands-on 16-step MIDI sequencer and controller built for electronic music performance. Whether you're chopping samples in Traktor, sequencing a modular rig, or driving any MIDI gear, Lyrae gives you four independent slots, per-step velocity and note control, swing, and a note repeater — all from a compact, gig-ready layout with 16 backlit step buttons and four assignable control encoders.
Under the hood it runs on an ARM Cortex-M7 at 600 MHz, which means rock-solid timing whether you're syncing to its internal clock or locking to an external source via USB or 5-pin DIN MIDI. A CV/Gate output lets you patch straight into analog and Eurorack gear too. Twenty onboard presets save and recall your patterns instantly, so switching between sets or songs is effortless.
Three switchable interface modes — Traktor, Modular, and Custom — let you tailor the entire control surface to your setup. Pair that with a crisp OLED display, full LED feedback, and a modular open-source firmware, and you've got a sequencer that fits the way you actually play.
Key Features
1Four-Slot Step Sequencer
Sequence up to four independent tracks simultaneously with per-step velocity, note assignment, swing, and a built-in note repeater.
2Triple Interface Modes
Instantly switch between Traktor, Modular, and Custom mappings so one device adapts to your DJ software, Eurorack rig, or any MIDI setup.
3USB + DIN MIDI + CV/Gate
Connect to virtually anything: computers via USB MIDI, hardware via 5-pin DIN, and analog synths through the dedicated CV/Gate output.
420 Onboard Presets with Instant Recall
Save and load full sequencer states from EEPROM storage, making set transitions and live improvisation seamless.
Watch it in action
Video coming soon...
Specifications
Processing
- Processor
- ARM Cortex-M7 (@ 600 MHz)

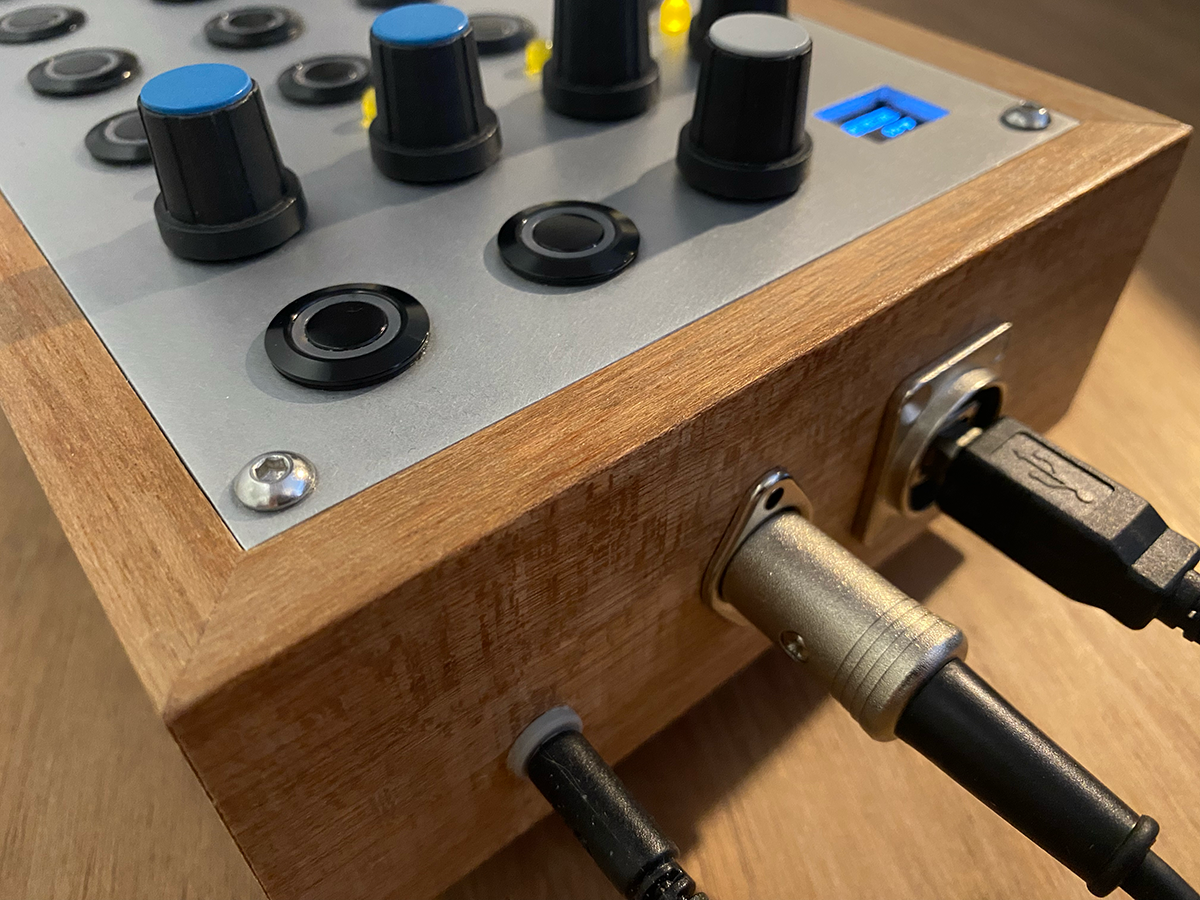

Connectivity
- MIDI — USB
- USB MIDI (input & output), class-compliant
- MIDI — DIN
- 5-pin DIN MIDI (input & output)
- CV/Gate Output
- 1x CV/Gate on dedicated output pin
- Clock
- Internal (40–250 BPM) + external sync via USB or DIN MIDI
Interface
- Display

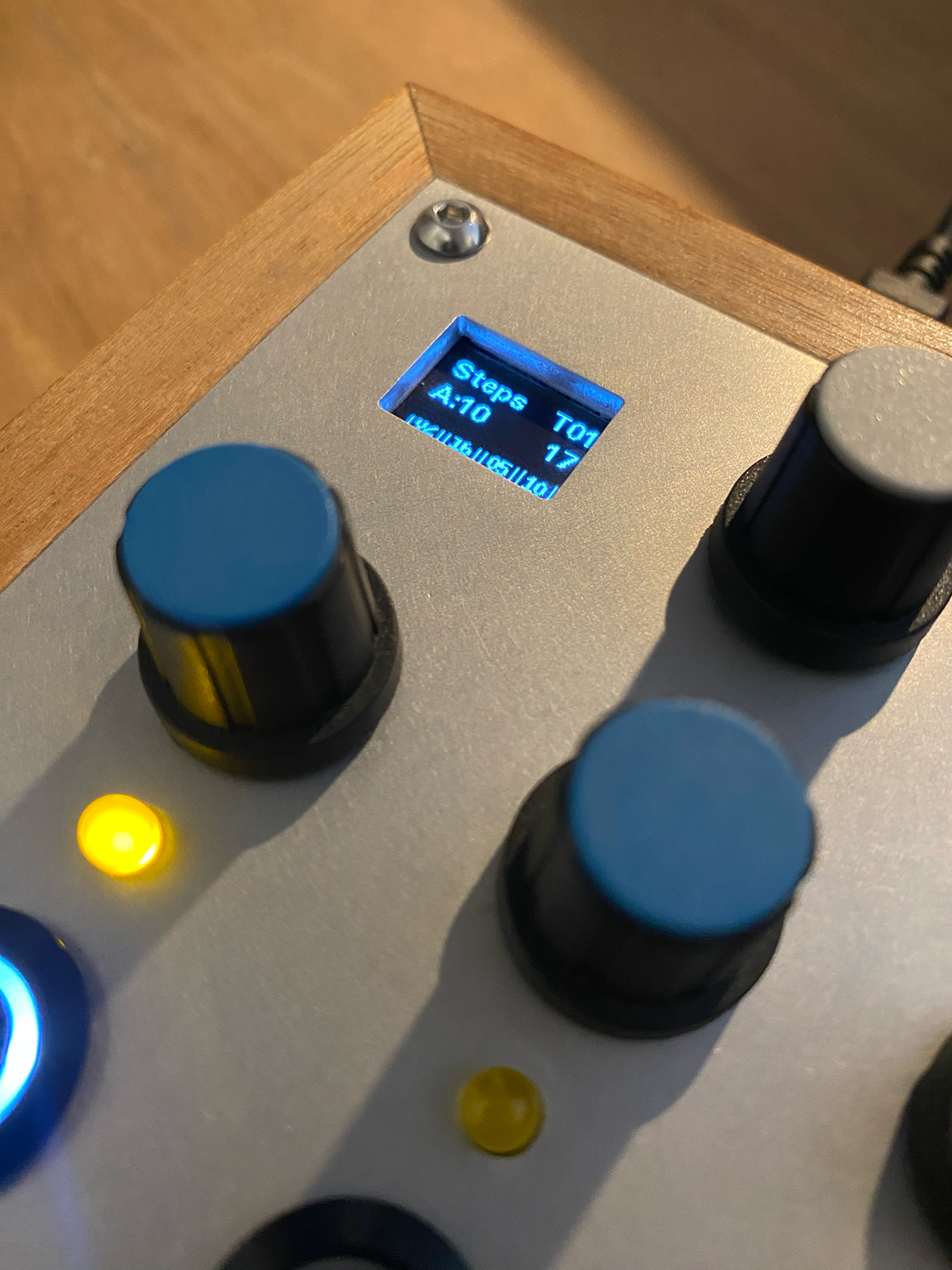

- 128 x 64 OLED
- Step Buttons

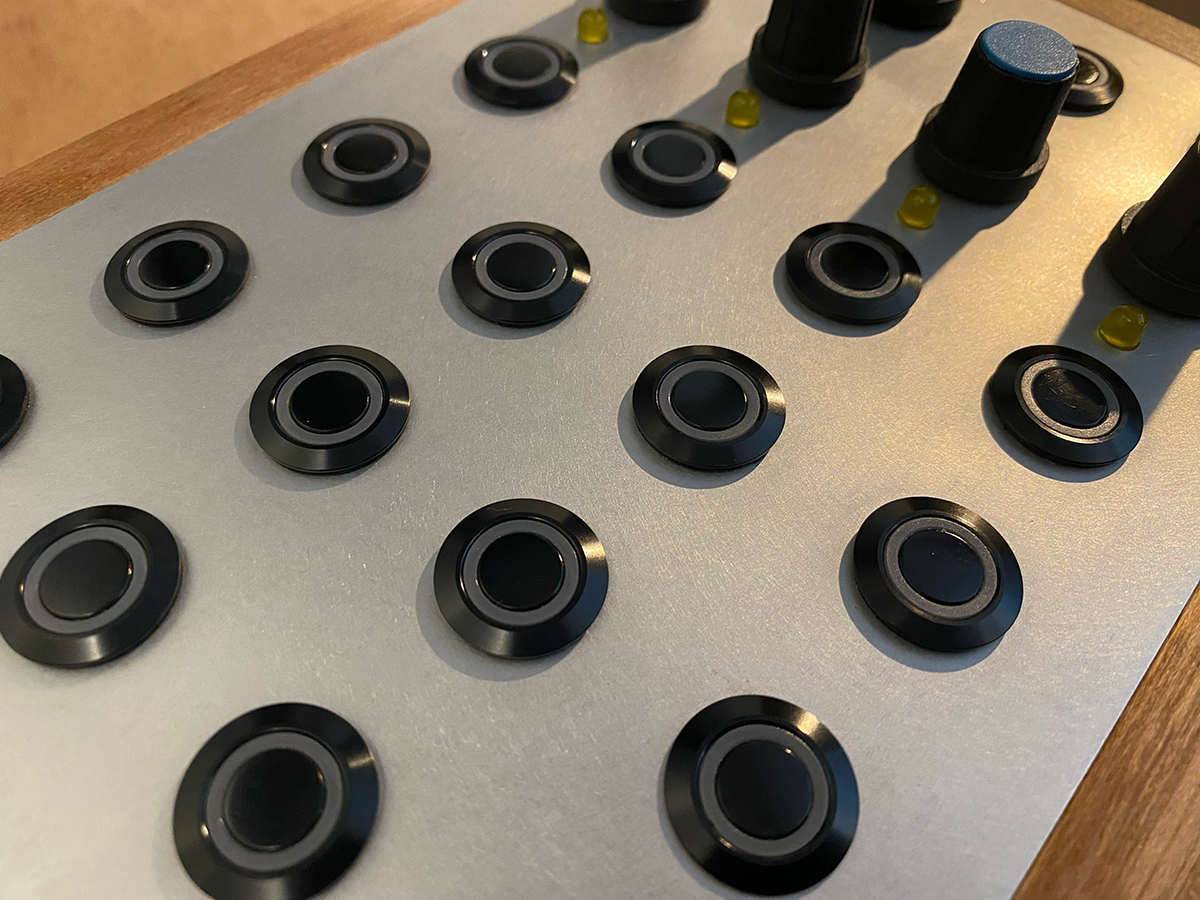

- 16 backlit buttons in a 4 x 4 matrix
- Rotary Encoders
- 5 total — 1 menu encoder + 4 assignable control encoders
- Additional Buttons
- 4 encoder buttons + menu, mode, and control buttons (8 total)
- LEDs
- 22 individually addressable LEDs (TLC5947 12-bit PWM driver)
Sequencer
- Sequencer
- 4 slots, 16 steps per pattern, 96 PPQN resolution
- MIDI Messages
- Note On/Off, Control Change, Program Change (configurable channel)
- Preset Storage
- 20 presets in EEPROM (10 Modular + 10 Traktor slots)
- Interface Modes
- Traktor, Modular, Custom
- Operating Modes
- Sequence, Perform, Presets, Clock
Want one, have a question or found a problem?
Ask a question, share feedback, or report an issue with your Conundrum 16.
