Traktor Beam

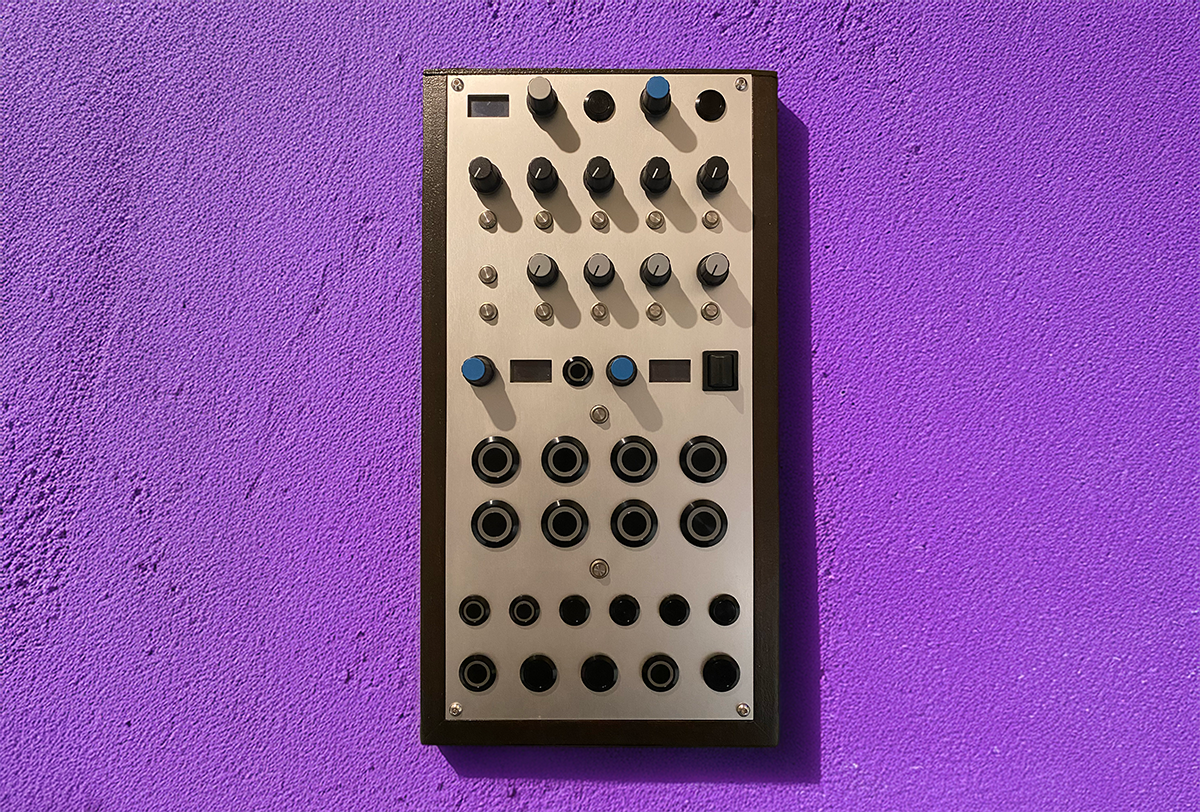

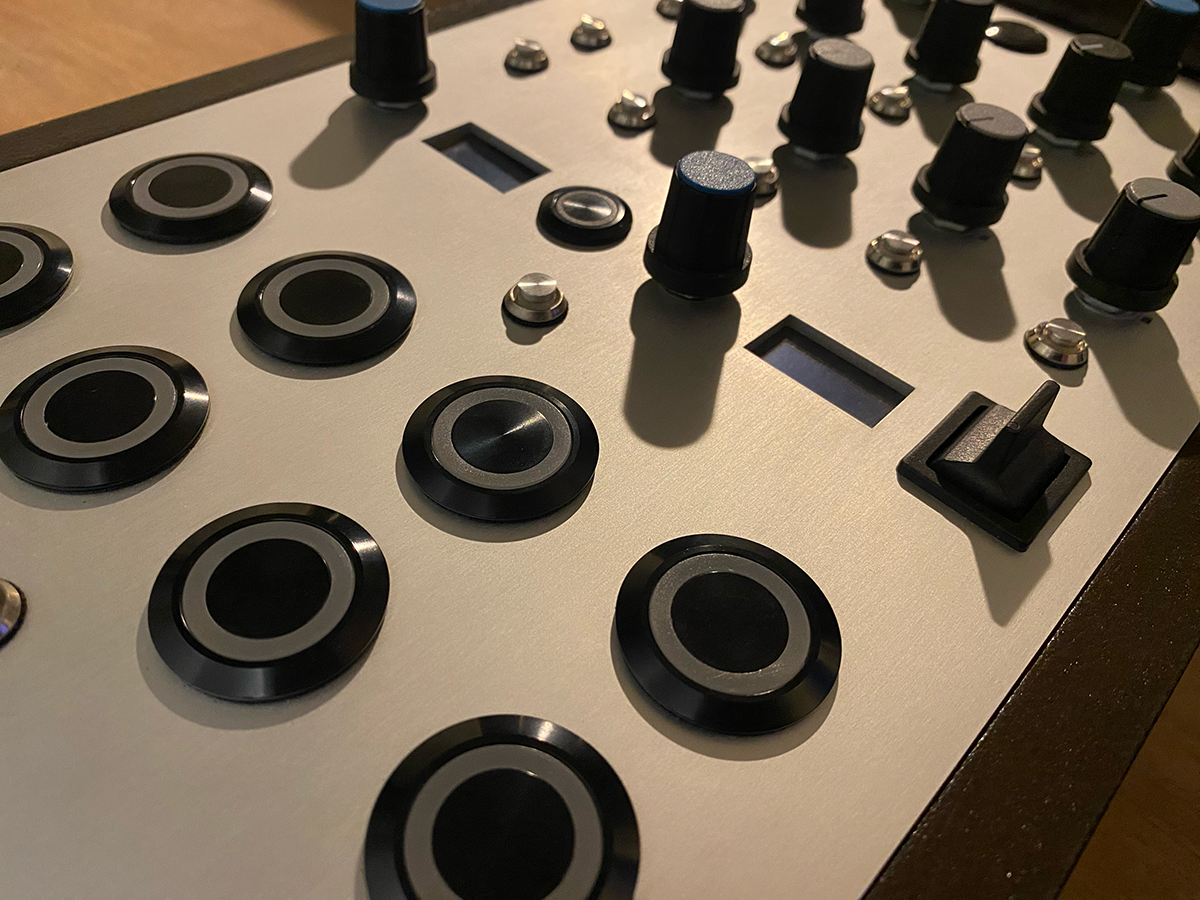

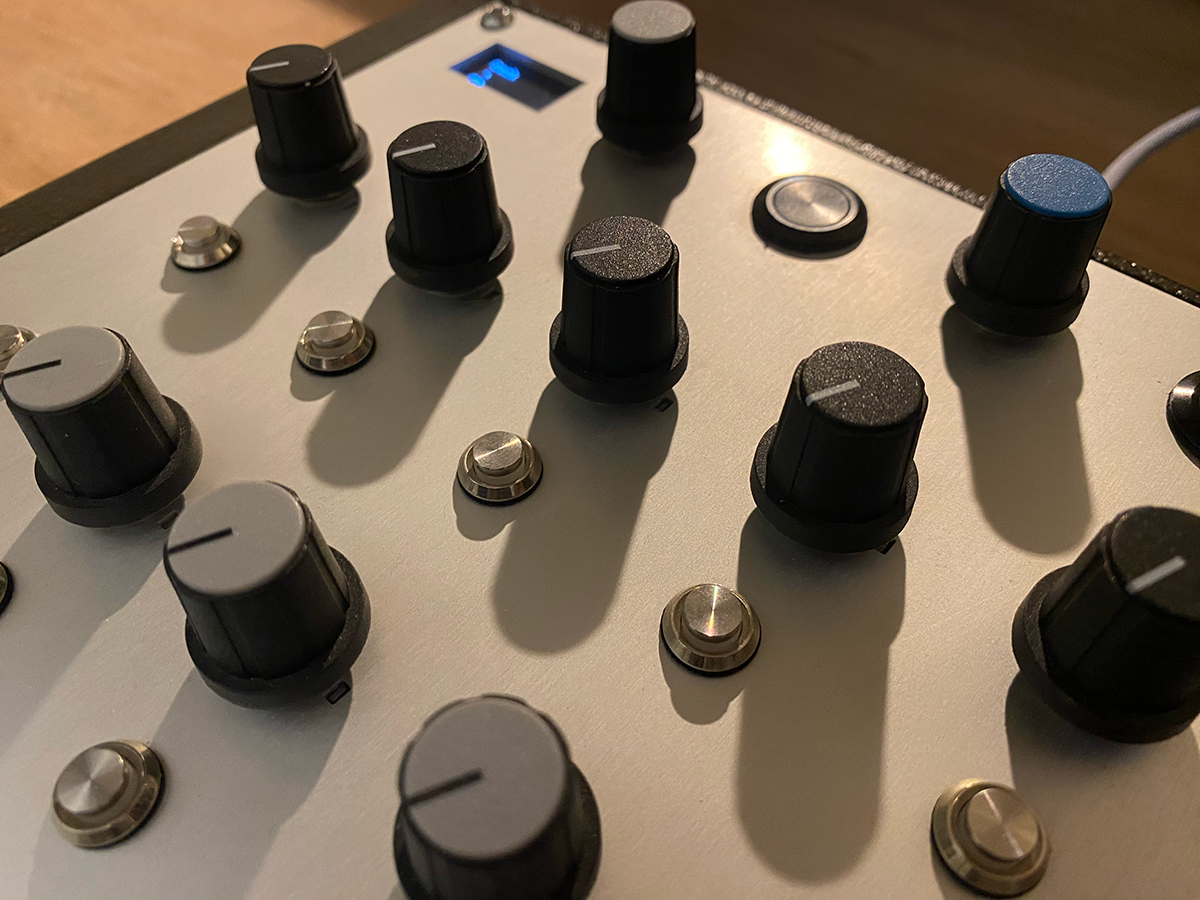

The Traktor Beam is a custom-built MIDI controller designed from the ground up for Traktor Pro DJs who want hands-on control without compromise. With four-deck switching, dedicated loop and beat jump sections, two configurable FX banks, and nine analog knobs, it puts everything you need right under your fingers — no menus, no mouse, no distractions.
Under the hood, a 600MHz processor handles all the heavy lifting with both USB and 5-pin DIN MIDI output. Three OLED displays give you real-time feedback on your active deck, loop size, and move mode, so you always know exactly where you are. Every single MIDI assignment can be remapped directly from the controller and is saved to onboard memory, meaning your setup stays with you.
Whether you're routing FX banks to external gear over DIN MIDI, controlling Traktor stems, or plugging in a foot switch for hands-free tricks, the Traktor Beam adapts to your workflow by enabling you to remap/assign any MIDI command to any button or knob.
Key Features
1Built for Traktor, Down to the Core
Purpose-designed for Traktor Pro with native four-deck support, loop/move controls, and deep FX integration out of the box.
2Dual MIDI Output
Simultaneously sends USB MIDI to Traktor and 5-pin DIN MIDI to external synths, drum machines, or effects processors — with per-bank channel routing.
3Fully Remappable On-Device
Reassign any button, knob, or encoder’s MIDI message directly from the built-in menu system. All changes are stored persistently in EEPROM.
4Three OLED Displays

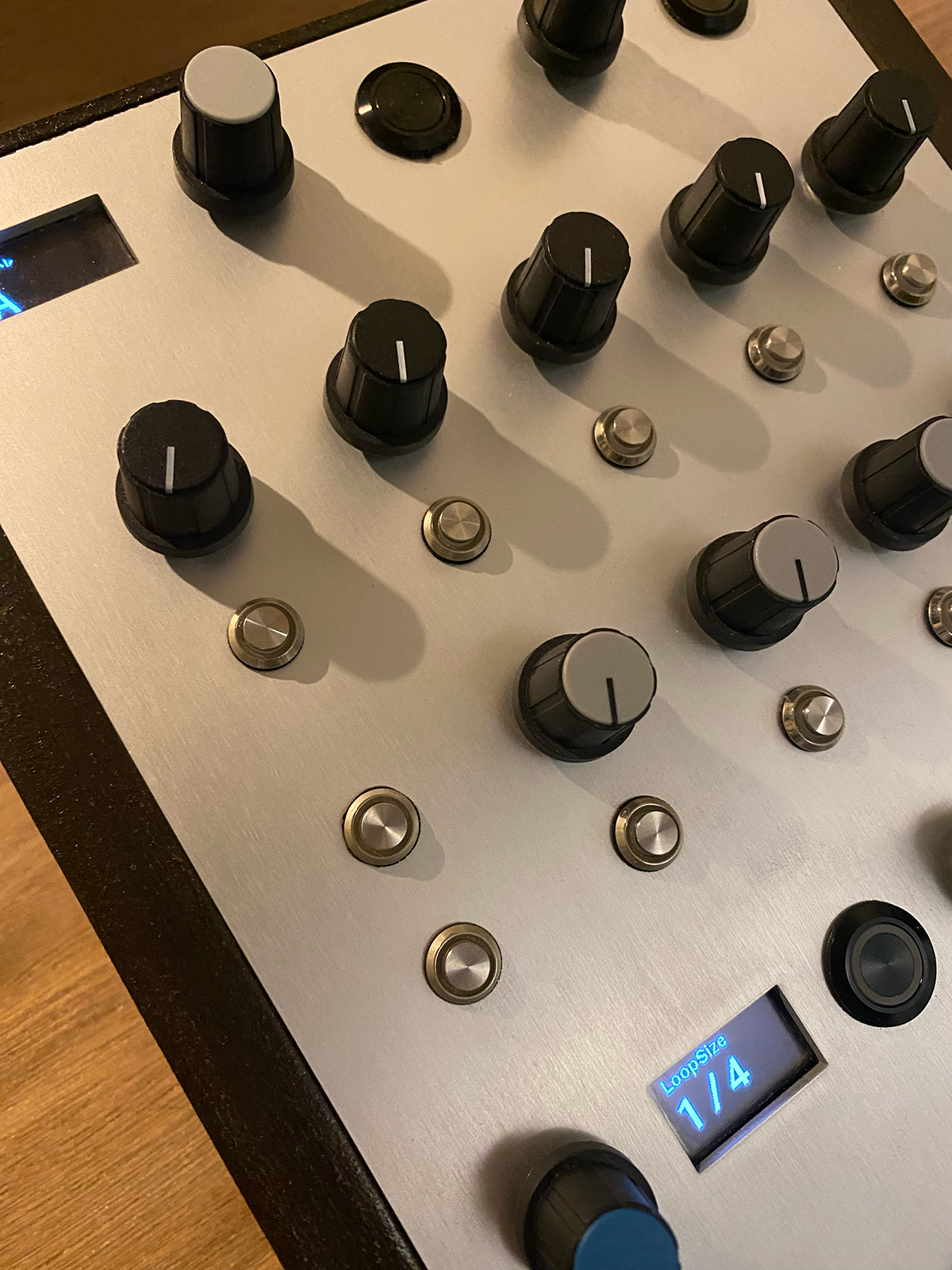

Dedicated 128x64 OLED screens for deck/menu, loop size, and beat jump mode give you instant visual feedback without ever looking at your laptop.
Watch it in action
Video coming soon...
Specifications
Processing
- Processor
- ARM Cortex-M7 (@ 600 MHz)
Connectivity
- MIDI — USB
- USB MIDI (input & output), class-compliant, no drivers required
- MIDI — DIN
- 5-pin DIN MIDI (input & output), configurable channel routing (channels 1–16)
- MIDI Messages
- Note On/Off, Control Change, Program Change
- MIDI Channels
- 16 channels; 4-deck mode mapped to channels 1–4 (Traktor decks A–D)
- Pedal Input
- Foot switch / sustain pedal jack with configurable MIDI output
- Connectivity
- USB (power + MIDI), 5-pin DIN MIDI, pedal jack
Interface
- Displays
- 3x 128 x 64 OLED — menu, loop size, move/beat jump
- Buttons
- 38 standalone + 1 dual-action (short/long press)
- Rotary Encoders
- 4 total — 1 menu encoder + 3 assignable (Loop Size, Move Mode, Tree/List)
- Potentiometers
- 9 analog knobs
- LEDs
- 24 individually driven LEDs, 3 brightness levels
- Total Controls
- 53+ physical controls (40 buttons/switches, 4 encoders, 9 pots)
System
- FX Banks
- 2 independent banks (5 + 6 buttons), individually routable to USB or DIN MIDI
- FX Bank 2 Modes
- FX mode and Stems mode
- Persistent Storage
- EEPROM for MIDI mappings, brightness, and FX routing settings
- Menu System
- 12-page on-device menu (deck, brightness, MIDI monitor/assign/reset, FX routing, pedal config)
Want one, have a question or found a problem?
Ask a question, share feedback, or report an issue with your Traktor Beam.
